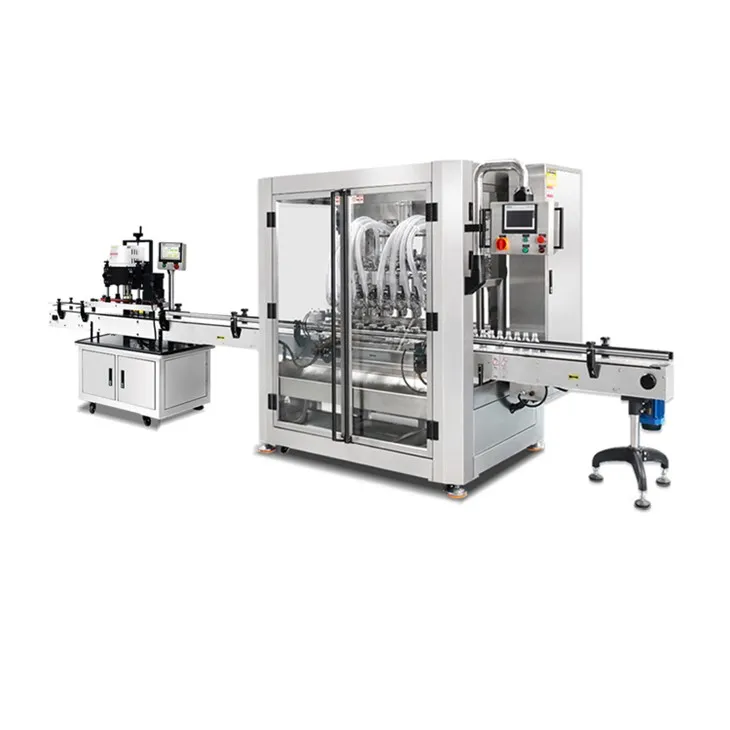

Tsis Siv Neeg 6 Lub Taub Hau Taug qab Filling Capping Tshuab

Kev kub ceev 6 lub taub hau taug qab hom kua lub raj mis filling tshuab txais PLC programmable tswj, nws yog ib txoj hauv kev ua haujlwm ntawm optics, mechanism, hluav taws xob, sensor thiab pneumatic. Piston twj tso kua mis siv servo lub cev muaj zog tsav, kuj teeb tsa kev kub ceev thiab qis qis. Thaum lub ntim ntim tuaj rau hauv lub raj mis lub qhov ncauj yuav pib pib qis ceev kom tsis txhob muaj kua nchuav. Lub tshuab no yog qib siab ntawm automation, yooj yim los kho, thaum hloov lub raj mis sib txawv thiab ntim ntim. Tsuas yog teeb tsa qhov ntsuas ntawm qhov screen kov. Capping ib feem txais kev taug qab qhov chaw cap ntsia hlau. Tsis muaj lub raj mis puas thiab lub hau puas thaum lub sijhawm capping. Cov khoom muaj lub neej ua haujlwm ntev, kev ua haujlwm ruaj khov, tsis tshua muaj suab nrov, siv ntau yam thiab tsim nyog tus nqi. Lub tshuab txais 304 stainless hlau ncej, zoo nkauj thiab dav. Qhov ntau lawm ceev ntawm lub tshuab no yog adjustable los ntawm zaus hloov dua siab tshiab, uas yog conducive rau kev txhawb ntau lawm kab. Nws yog qhov kev xaiv zoo tshaj plaws rau kev ntim khoom loj thiab nruab nrab. Haum rau cov roj zaub, jam, zib ntab, syrup, kev npaj, tshem tawm tus neeg sawv cev, roj thiab kev lag luam tshuaj txhua hnub ntawm ntau yam khoom khov.

Tsis Siv Neeg Servo Tracking Filler:

1. Kev ua haujlwm yooj yim, yooj yim debugging. Ceev thiab dav siv nyob rau hauv kev lag luam, piv nrog linear filling, taug qab filling yog ob zaug ceev.

2. Filling system, lifting system thiab taug qab qhov system yog txhua yam tswj los ntawm servo lub cev muaj zog, nrog kev ua haujlwm siab; guardrail yog tswj los ntawm stepper lub cev muaj zog.

3. Nws tsis tas yuav siv cov cuab yeej los hloov cov khoom sib txawv ntawm cov txheej txheem tag nrho. Qhov loj ntawm cov khoom yog tswj thiab debugged los ntawm lub vijtsam kov, thiab txhua yam khoom tsuas yog yuav tsum tau debug cov mis tsis yog thawj zaug. Tom qab cov tsis tau txais kev cawmdim, cov khoom tom ntej ntawm cov khoom no yuav tsum tau ua. Yuav tsis xav tau lub tshuab debugging. Thaum hloov cov khoom, koj tsuas yog yuav tsum tau tshem tawm cov kev qhia tshwj xeeb ntawm cov khoom xav tau ntawm tus qauv kov npo. Tom qab muab lawv tawm, cov cuab yeej yuav raug hloov dua siab tshiab thiab debugged rau cov khoom yuav tsum tau specifications.

4. Lub filling ceev thiab ntim ntim tuaj yeem nkag ncaj qha rau ntawm lub vijtsam zaub, thiab cov filling tuaj yeem ua tiav yam tsis tau kho cov khoom siv tshuab.

5. ntse tswj, tsis siv neeg photoelectric nrhiav, tsis muaj lub raj mis filling.

6. Muaj qhov tsis muaj qab hau ntawm qhov kawg ntawm lub tshuab conveying; nws tuaj yeem txuas rau sab nraub qaum rau kev hloov pauv ntawm txoj kab rov qab kawg conveying.

7. Cov ntaub ntawv tseem ceeb ntawm cov khoom siv yog stainless hlau thiab qib high-qib aluminium alloys, uas ua raws li GMP ntau lawm specifications. Tag nrho cov qauv yog ruaj thiab zoo nkauj.

Tsis siv neeg Servo Tracking Capper:

1. Lub servo system + torque module tswj lub taub hau capping, thiab lub hau kaw ntom ntom tau teeb tsa dawb.
2. Lub hau kev pub mis yog hloov Cap of elevator uas tuaj yeem khaws cia ib ncig ntawm 500caps ib zaug.
3. Rau qhov sib txawv ntawm lub raj mis thiab lub hau, tsuas yog yuav tsum tau kho tsis tas yuav hloov qhov chaw tsis suav nrog lub taub hau capping.
4. Tsis muaj kua shakes tawm --- fwj tsis tas yuav tsum nres rau capping.
5. Daim ntawv thov dav --- hloov ceev rau ntau lub kaus mom.
6. Kev ua tau zoo siab cap loading --- tuaj tos & tso capping.
